7010030 SA 16782
Three cell filter
SF-7010030AY
| Color: | |
|---|---|
| Life Time: | |
| Package: | |
| Quantity: | |
32 Filter Cartridge Air Filter Replaces for Excavator 7010030

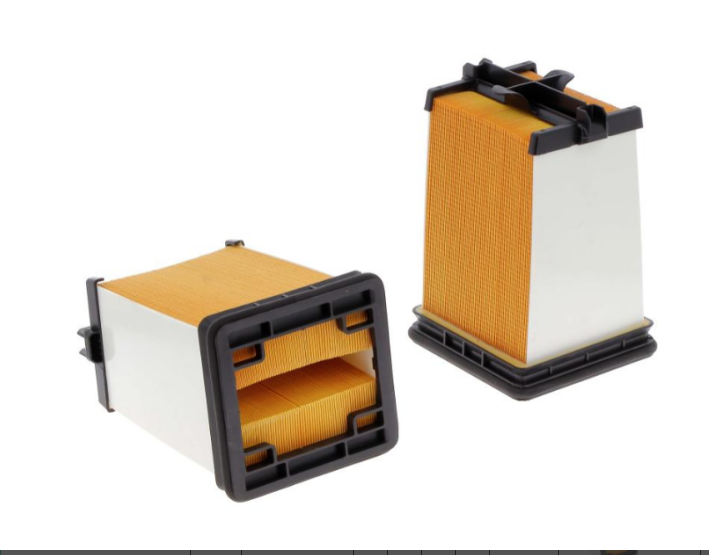

Detailed Photos
| Application | 32 Filter Cartridge Air Filter Replaces for Excavator 7010030 |
| Part number | 7010030 |
| Efficieney | 99.00% |
| Life Time | 2500-3000 hours |
| Brand | Replaces for 7010030 |
| D1(mm) | 290.000 |
| D2(mm) | 277.000 |
| D3(mm) | 264.000 |
| H1(mm) | 170.000 |
| Weight(kg) | 1.060 |
| Volume(m³) | 0.010039 |
| HS Code | 8421310000 |
| Transport Package | Netural packing or according to client requirements |
1) Function: By adopting the interval bubble folding process, the effective filtering area of the filter element is increased, allowing the air filter to efficiently intercept and capture dust particles and dust particles in the intake system of the air compressor, allowing clean air to enter the compressor and reducing abnormal wear of mechanical components. High precision air filter can reduce the bearing load of the oil filter and oil separator core and extend their service life.
2) Flow and efficiency: Design flow rate of 1-60 cubic meters per minute. The 2-micron filtration efficiency is 99.5%.
3) Replacement cycle: 3000 hours.
4) Filter particles and test report of filter element: 98% at 1 μ m; 99.5% at 2 μ m; 3 μ m reaches 99.9%.
32 Filter Cartridge Air Filter Replaces for Excavator 7010030

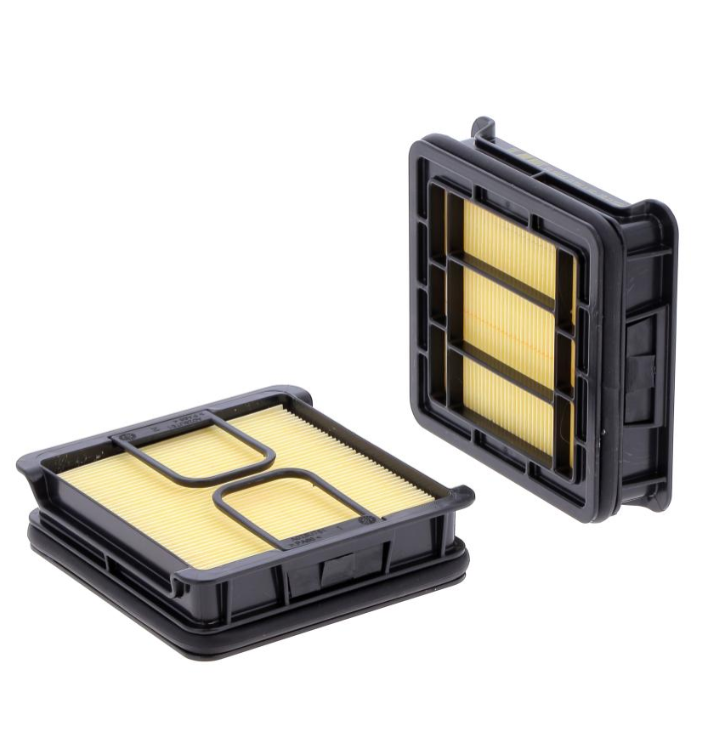

Detailed Photos
| Application | 32 Filter Cartridge Air Filter Replaces for Excavator 7010030 |
| Part number | 7010030 |
| Efficieney | 99.00% |
| Life Time | 2500-3000 hours |
| Brand | Replaces for 7010030 |
| D1(mm) | 290.000 |
| D2(mm) | 277.000 |
| D3(mm) | 264.000 |
| H1(mm) | 170.000 |
| Weight(kg) | 1.060 |
| Volume(m³) | 0.010039 |
| HS Code | 8421310000 |
| Transport Package | Netural packing or according to client requirements |
1) Function: By adopting the interval bubble folding process, the effective filtering area of the filter element is increased, allowing the air filter to efficiently intercept and capture dust particles and dust particles in the intake system of the air compressor, allowing clean air to enter the compressor and reducing abnormal wear of mechanical components. High precision air filter can reduce the bearing load of the oil filter and oil separator core and extend their service life.
2) Flow and efficiency: Design flow rate of 1-60 cubic meters per minute. The 2-micron filtration efficiency is 99.5%.
3) Replacement cycle: 3000 hours.
4) Filter particles and test report of filter element: 98% at 1 μ m; 99.5% at 2 μ m; 3 μ m reaches 99.9%.
