Air compressor air filter element filter increase C23610 1613800400 6.3564.0 6.3564.1

Air Filter (Air Filter) is mainly used in pneumatic machinery, internal combustion machinery and other fields, the role is to provide clean air for these mechanical equipment, to prevent these mechanical equipment in the work of inhaling air with impurity particles and increase the probability of abrasion and damage. The main components of the air filter are the filter element and the casing, of which the filter element is the main filtration part, which undertakes the filtration work of the gas, and the casing is the external structure that provides the necessary protection for the filter element. The working requirements of the air filter are to be able to undertake high-efficiency air filtration work, not to increase too much resistance to air flow, and to work continuously for a long time.
  • increase C23610 1613800400 6.3564.0 6.3564.1 SA6753 SA 17193 3902783-M1 2914931000 2901043100 5821149 01266748 1613800400 3902783-M1

  • S.G

  • SA-8305AYZ

Specification L*W*H/total H:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

High Quality Replace Mann Air Filter C23610 1613800400 2914931000 569003801

Part number:C23610 NA075360 KHY0070 SA-M8305 1613800400 6.3564.0 6.3564.1 SA6753 3902783-M1 2914931000 2901043100 5821149 01266748 1613800400 3902783-M1 2914931000 5821149 BOMAG 01266748 6.3564.0 32/920401 1615938801 02250164-532 54689773 1181003 89266761 20405830 45-600-56824 3840034 AF25729 AF26397 P782104 RS3994 SA17193 E2000L 6211475050

Basic Info.

Model NO.
C23610 1613800400 2914931000 569003801
Efficiency
F8
Filtration Grade
Pre Filter
Type
Cartridge Filter
Color
Pink
Pack
One Bag with One Box
Leading Time
3-7 Days After Payment
Life Time
3000h
Payment Term
100% T/T Before Shipment
Transport Package
DHL FedEx TNT
Specification
H404*O. D220*I. D50124mm
Trademark
neutral
Origin
Dongguan China
HS Code
8421399090
Production Capacity
2000PCS/Day

Packaging & Delivery

Package Size
25.00cm * 25.00cm * 44.00cm
Package Gross Weight
5.000kg

 In the selection of filter paper, we mainly consider several points:

1) The effective area is large, which means that the filter paper has a large usage area, a large dust capacity, low resistance, and a long service life. Of course, the cost also increases accordingly. 2) The finer the fiber diameter, the better the interception effect, and the corresponding higher filtration efficiency. 3) The content of binder in the filter material is high, and the tensile strength of the paper is high. The filtration efficiency is high, and the shedding phenomenon is less. The background dust accumulation of the filter material is small, and the resistance is good, but the resistance correspondingly increases.


     At present, the filter materials we use are divided into wood pulp filter paper and filter paper that also contains fiberglass. Both use two brands, HV from the United States and Oslon from South Korea, which are professional international filter material manufacturers, and their filter paper has good stability. It provides good protection for the intake system of the air compressor, and further reduces the wear of the multi air compressor screws, extending the service life of the machine.

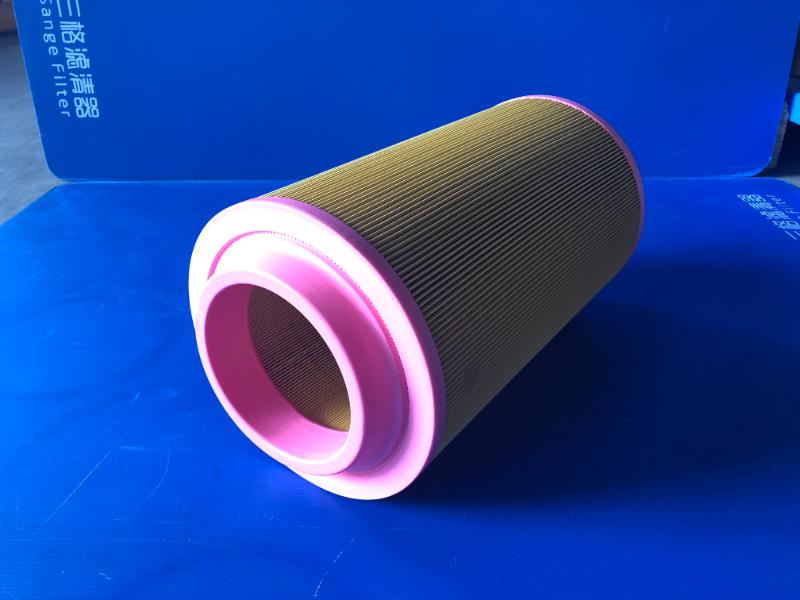

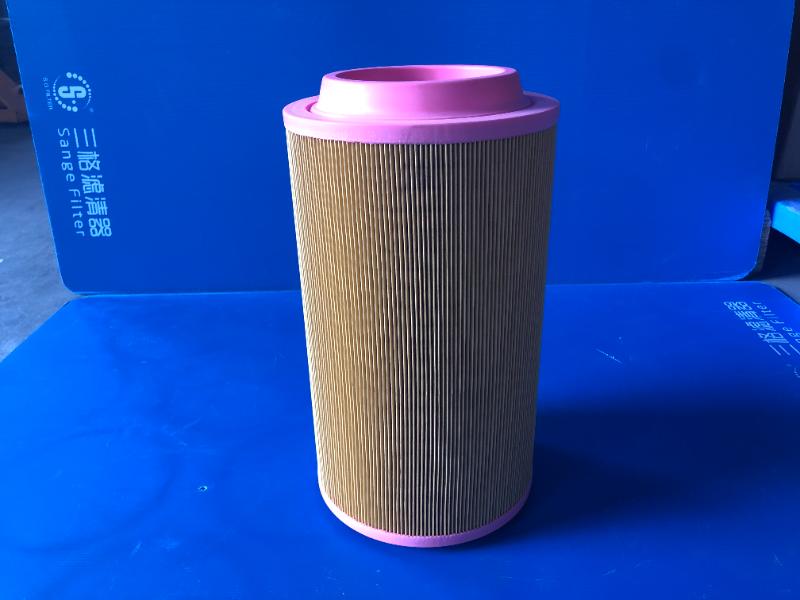

Detail Picture:




网站详情页
