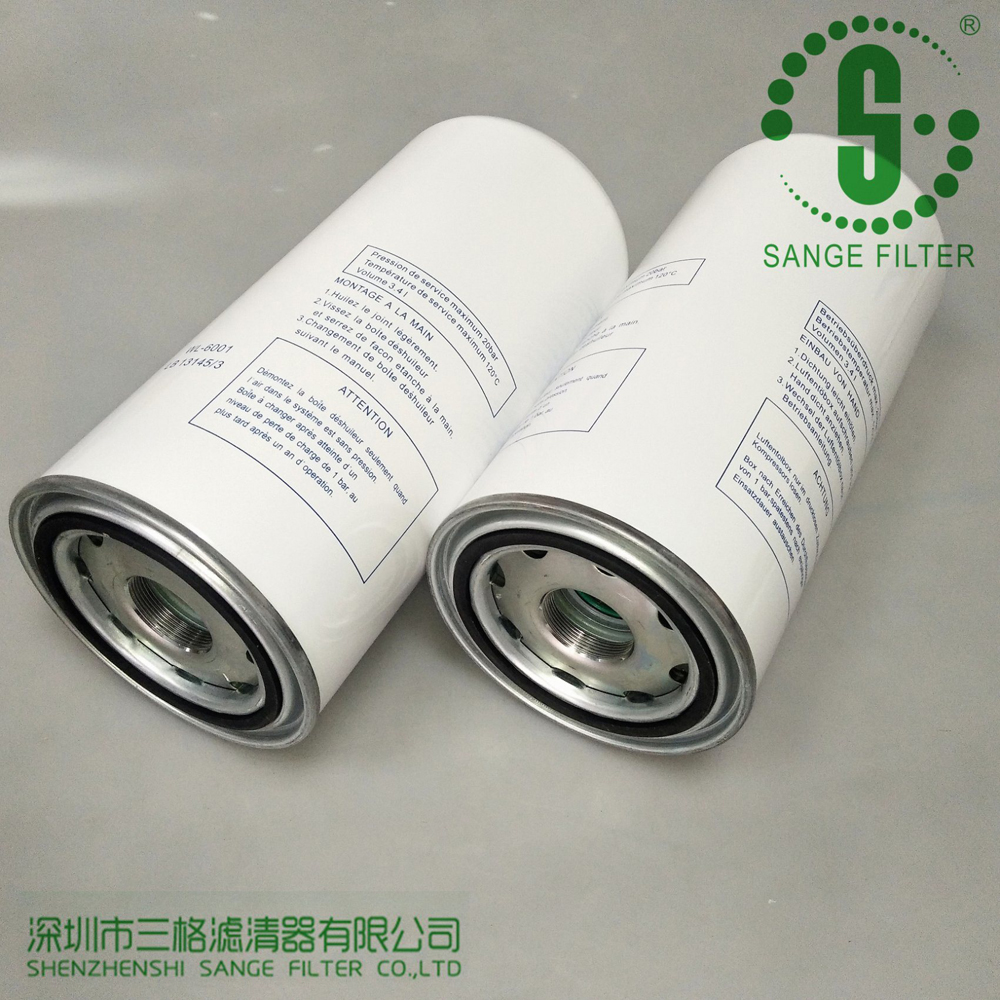

External oil and gas separator LB13145/3 FS-030037 6221358250 OV6076 Elgi

Oil and gas separation is generally composed of a primary separation of oil and gas barrels and a secondary separation of oil and gas separators. Most of the oil in the oil and gas mixture falls to the bottom of the tank under the action of centrifugal force and gravity, and the compressed air containing oil mist (suspended oil particles below 1um in diameter) must be filtered through the micron and glass fiber filter material layer of the oil and gas separation filter. The oil particles are directly intercepted by the filter material and the mechanism of inertial collision condensation, so that the suspended oil particles in the compressed air quickly condense into large oil droplets, and the oil gathers at the bottom of the oil core under the action of gravity, and returns to the main engine lubricating oil system through the secondary return pipe inlet at the bottom recess, so that the air compressor can discharge more pure and oil-free compressed air

  • LB13145/3 FS-030037 6221358250 DF5004 OV6076 DF5004

  • Three cell filter

  • OS-WZ204

Size:
Φ136*305 M39*1.5
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

High Performance Replacement Air Compressor Part  Separator LB13145/3 1626832100 ss928 LB13145/20 575000101 221029  A10525274 12463171 R12101 DF5004 AS782909

Part number:LB13145/3 NS00450 FS-030037 OV6076 DF5004 2205406507 98262/223 6229030300 71162-46910 172.58111 AA1355 91108-042  0220701001 SS913 SQ632 DSP400.0 A10525274 91108-042, 3231013302 711311211-46910,71162-46910 FS-030037 10525274 10071333507 4213-01 B006700770010 24724114 ATLAS COPCO 1626832100 ss928 LB13145/20 BOGE 575000101 BOTTARINI 221029 COMPAIR A10525274 HURRICANE COMPRESSOR AS2454 12463171 ROTORCOMP R12101 SOTRAS DF5004 VMC 575000101P AS782909 WORTHINGTON 6221372550 10291 641137 4060200600

Multiple printing options: Customized printing can be arranged according to your requirements for different printing requirements of the product

高清图

Product Parameters
Product Name High Performance Replacement Air Compressor Part  Separator LB13145/3 1626832100 ss928 LB13145/20 575000101 221029  A10525274 12463171 R12101 DF5004 AS782909
For Part Number LB13145/3 1626832100 ss928 LB13145/20 575000101 221029  A10525274 12463171 R12101 DF5004 AS782909
Efficieney 99.00%
Net Weight 5 kg
Life Time 2500-3000 hours
HS Code 8421399090
Transport Package Netural packing or according to client requirements

         External oil and gas separator LB13145/3 FS-030037 6221358250 OV6076 Elgi offered by China manufacturer Jiangxi SG Filter Company. Buy External oil and gas separator LB13145/3 FS-030037 6221358250 OV6076 Elgi directly with low price and high quality.

Previous:
Next:
LB13145/3 FS-030037 6221358250 DF5004 OV6076 2205406507 6229030300
